Repairing an Xbox HDMI port or trace can be a complex task that requires soldering and electronics skills.

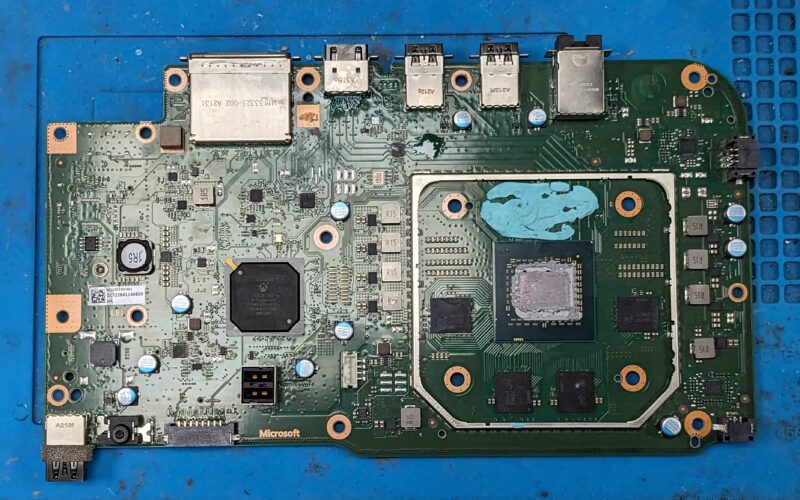

First we need to determine whether the issue is with the HDMI port itself or the traces on the Xbox’s motherboard. If the HDMI port is physically damaged or loose, it may need to be replaced. If the issue is with the traces on the motherboard, you’ll need to locate the damaged or broken traces which with this repair was very easy to see.

We needed to use tiny wires which we tinned and then carefully soldered onto the hdmi and the broken trace. Once we are happy with the work each wire was tested to look for shorts and possible breaks, finally we cover the trace work with conformal coating which insulates and keeps the wires held down before reassembling the console and returning it to our customer.
