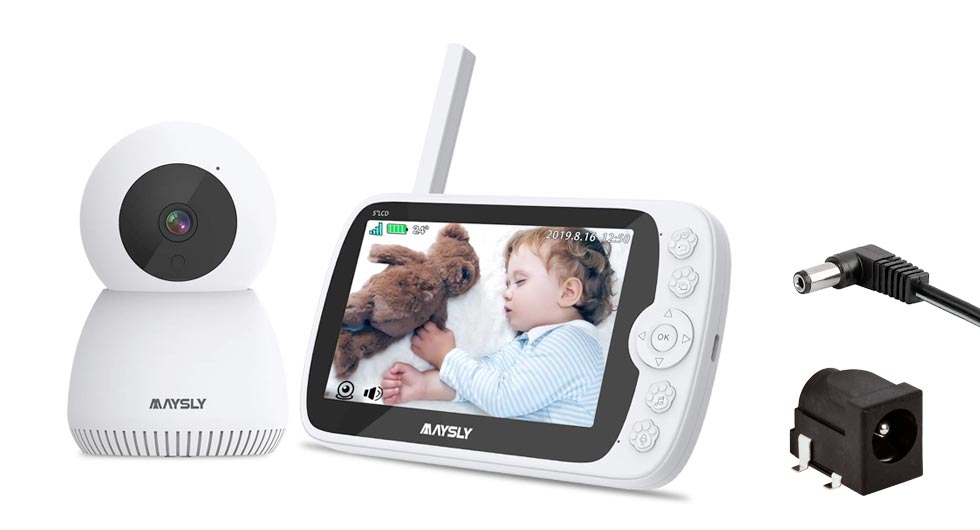

A customer recently brought in their Maysly baby monitor with a clear but critical issue. The DC power socket, responsible for charging and powering the unit, had snapped internally. This meant the device could no longer receive power, rendering it unusable.
It is important to distinguish this from other ports or sockets on similar devices. A baby monitor may include USB ports, pairing buttons, or audio connections, but the DC power socket is specifically designed to deliver power into the device. When this component fails, the monitor cannot function at all.
Diagnosing the Power Socket Fault
After carefully opening the unit, the problem was confirmed. The DC power socket had broken away from its solder points on the circuit board. This type of damage is typically caused by repeated strain, such as the charging cable being pushed in at an angle or pulled out forcefully over time.
Inspection Results
- The DC power socket had detached from the board
- No damage to the PCB tracks or pads
- The original connector remained intact
- No signs of overheating or electrical faults
This was an ideal scenario for repair, as it meant the original socket could be reused rather than replaced and simply soldered back to the board, but with a little additional solder to give extra strength.
Repairing the DC Power Socket
With the board in good condition, the repair focused on restoring the original power input and reinforcing it for long-term reliability.
Repair Process
- Cleaned the existing solder points to ensure a solid connection
- Repositioned the DC power socket precisely into place
- Re-soldered all contact points to restore electrical flow
- Applied additional solder to improve structural strength
- Tested the connection for consistent power delivery
Adding extra solder around the mounting points helps secure the socket against future stress, which is particularly important for components that are used frequently.
Why This Repair Was Effective
In many cases, a damaged baby monitor power socket can lead to deeper issues, such as lifted pads or broken tracks. Here, the absence of board damage allowed for a clean and reliable repair using the original component.
Benefits of This Approach
- Retains the original DC power socket
- Ensures perfect fit and compatibility
- Faster turnaround for the customer
- Cost-effective compared to full replacement
By preserving the original connector, the repair maintains the device exactly as intended by the manufacturer.
Preventing Future Power Socket Damage
While the repair is robust, a few simple habits can help prevent the issue from returning. Power sockets are naturally exposed to wear due to repeated use.
Practical Advice
- Insert and remove the charger straight, without twisting
- Avoid pulling on the cable when disconnecting
- Keep the socket clean and free from debris
- Use a properly fitting charger to reduce strain
Fully Restored Functionality
After completing the repair, the baby monitor powered on immediately and charged without interruption. The DC power socket is now firmly secured, providing a stable and reliable connection.
This repair highlights how careful handling and precise workmanship can restore essential functionality, even when a key component like the power socket has failed. Contact us today if you feel we can help with a repair.
